CT Series Multi-Function Timer/Counter
- Count length / quantity / batch / timing
- High speed counter, counting speed up to 10KCPS
- 2 preset scale value setting, with batch output function
- Input signal : pluse voltage input, both PNP and NPN
- With power failure memory function
- Key lock function
Specification
| Power Supply | 100 – 240VAC |
| INA, INB Input | 1cps, 30cps, 1Kcps, 5Kcps |
| frequency | 10Kcps is optional on menu |
| Input pulse width | Reset input : 1ms or 20ms selectable INA, INHIBIT, RESET, BATCH RESET 1ms or 20ms selectable |
| Input | To select voltage input or non-voltage input Voltage input : input inpedance is 5.4KΩ, H is 5-30VDC L is 0-20VDC Non-voltage input : short circuit impedance is max 1KΩ, residual voltage is max 2VDC, open impedance is min 100KΩ |
| One-Shot output | 10/20/100/200/500/1000/2000/5000ms |
| Data storage | 10 Years |
| Auxilary power | 12DC ±10%, <100mA |
| Work Temperature | -10 – 50 °C (non-freezing) |
| Relay capacity | NO : 250VAC, 3A Impedance, NC : 250VAC, 2A Impedance |
| SSR capacity | Max. 30VDC, 100mA |

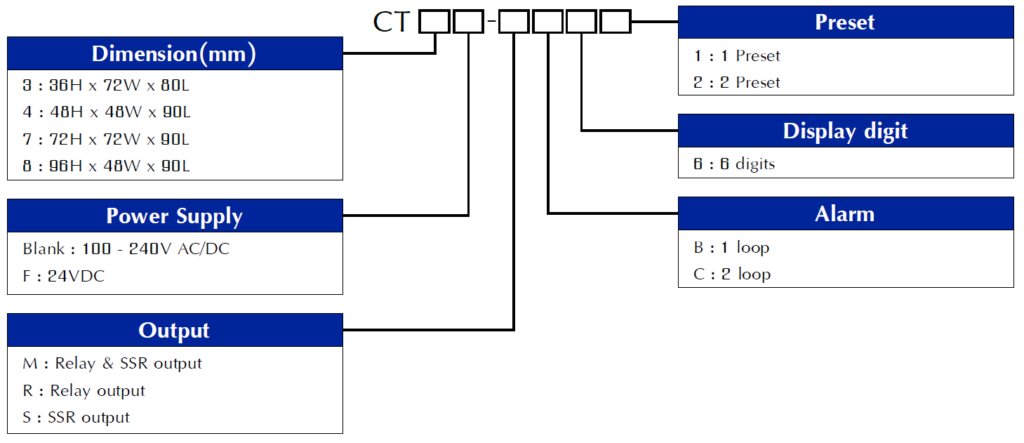

How to order

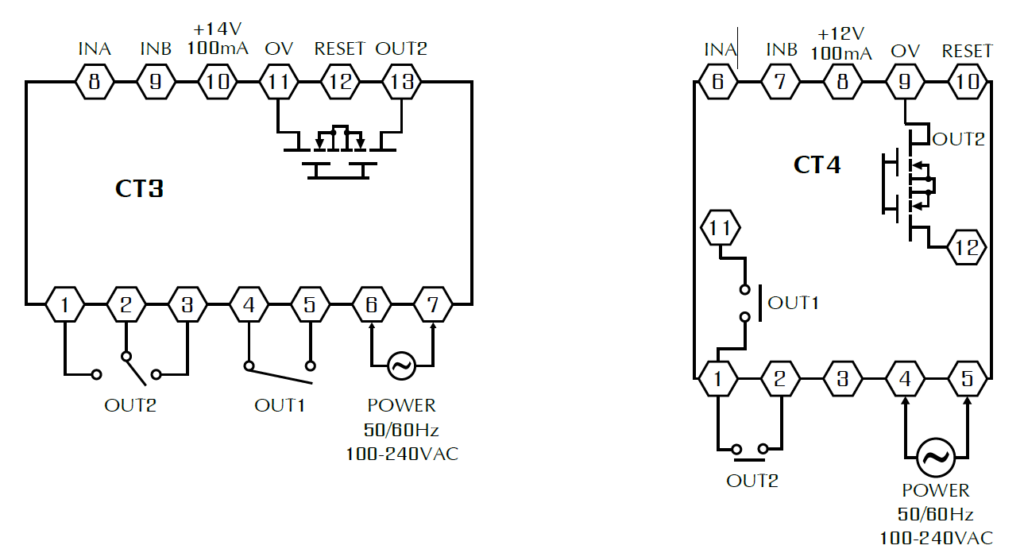

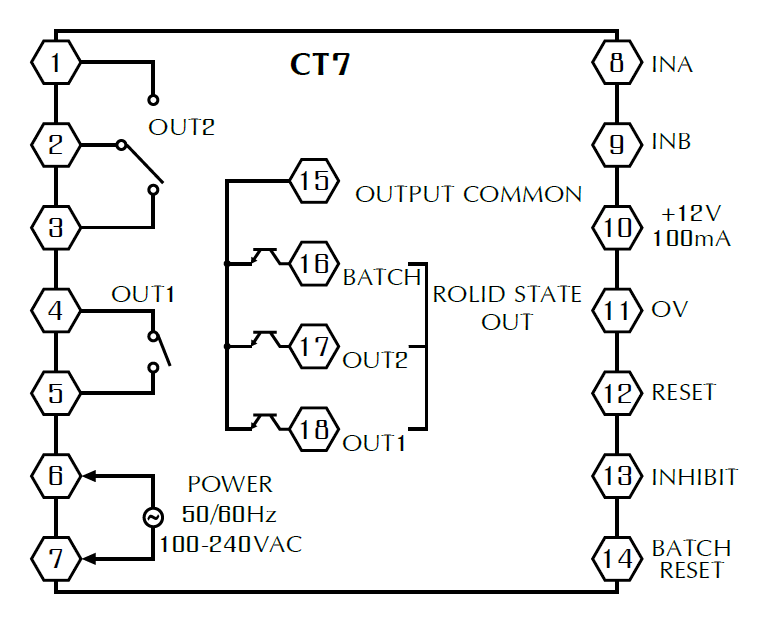

Connection
