- Application Load Type: AC1
- C Technical Specification
- Inrush current( 1 cycle) : 700%
- DVS/DT : 500V / μs
- DVC/DT : 100V/ μs
- Power net frequency : 50Hz/60Hz
- Max. Inactive Delay: 10ms
- Zero-cross area of SSR : ±15V
- Insulation voltage ≥ 2000V AC
- Ambient temperature: -30-75
- Max. active delay for zero-cross type SSR: 10ms
Features
- High bright LED as input indication
- With inrush current absorb circuit inside the SSR
- Control connection applying constant current circuit ,it is not necessary to connect a connect a serial current-limit resistance within 5~32V

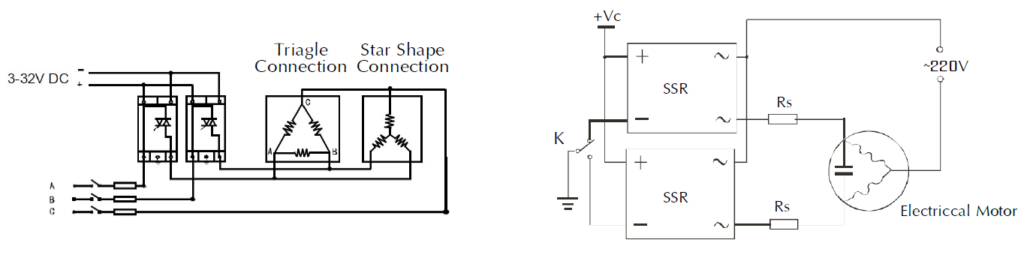

Connection

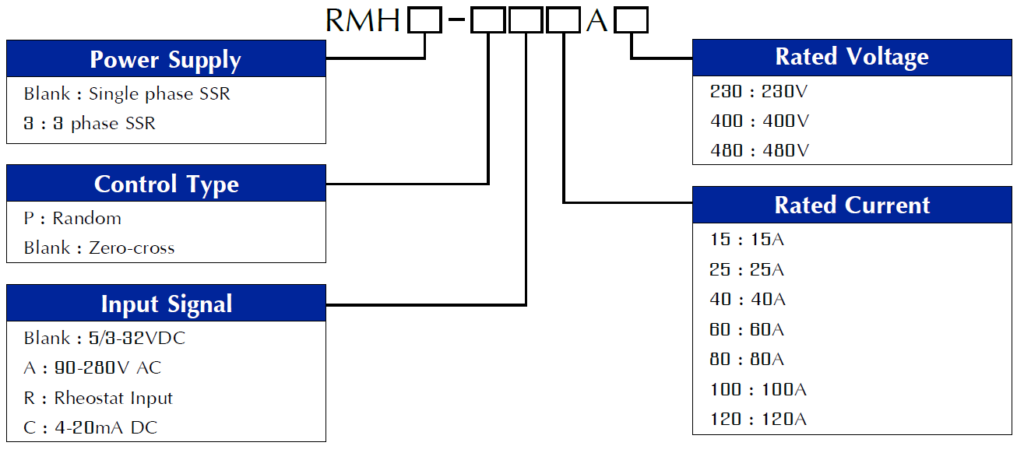

How to order
