- Stong anti-gaming capacity, high timimg accuracy
- Range : 0, 01H-99, 99H, Can be set freely
- Small Size, optical panel mouning or DIN rail mounting
- With dustproof cover to protect the dial swith
Specification
| Power | 220VAC ±10% 50Hz, 110VAC ±10% 60Hz, 24VDC ±10% |
| Power Consumption | <2W |
| Timing Range | 0.01 Second -99.99 Second 0.01 Minute – 99.99 Minute 0.01 Hour – 99.99 Hour |
| Reset Time | <0.2 Second |
| Delay Method | On Deley |
| Contact Capacity | 250VAC 3A |
| Pluse Anti-Jamming | Power Terminal : 4KV Signal Terminal : 2KV (Pulse Width=10µS) |
| Dielectric Voltage | Power Terminall-All metal terminals 2000VA 50Hz 1Minute |
| Working Ambient | -10~55 °C, 35-85 %RH |

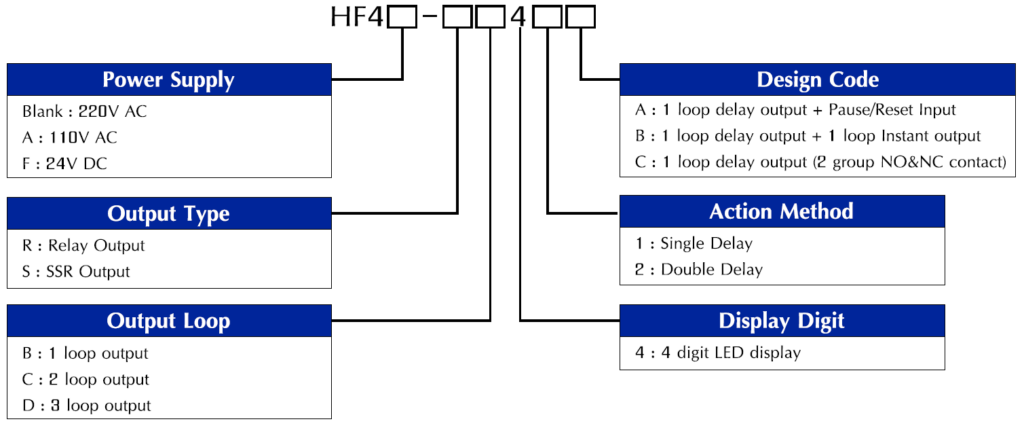

How to order
