TF Series Intelligent Temperature Controller

TF Series Intelligent Temperature Controller

admin0
  • With display , control alarm function
  • Universal TC/RTD/MV/RT/MA/V input , multi control mode
  • With compressor start delay function
  • Relay , SSR and 4-20mA output , you can choose two output together
  • Accuracy : 0.5%F.S

Specification

Power supply100-240V AC/DC
Total current<300mA (220V AC)
Input impedance100KΩ (0.2mA)
DisplayDual line 4 digit LED
Working Temperature-10-55 °C
Humidity45-85 RH%
Output CapacityRelay : Capacity 3A/250V AC SSR : 30mA , 24V

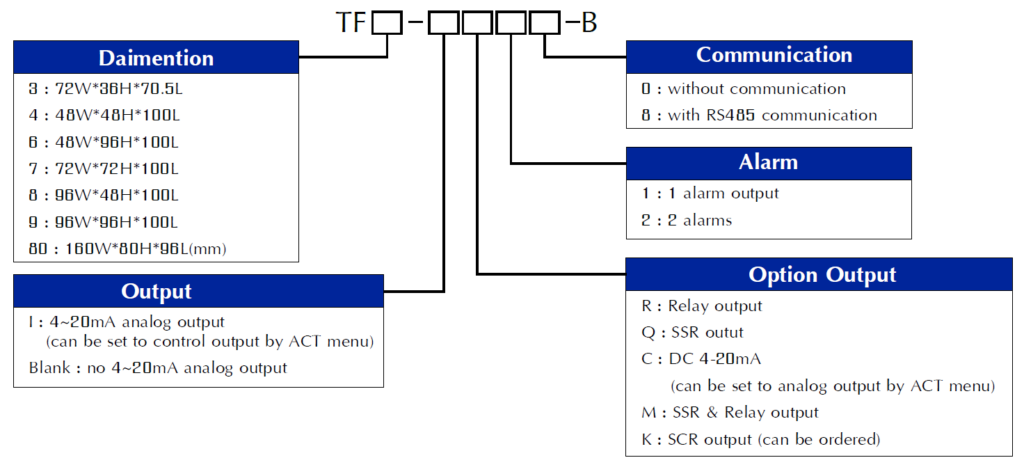

How to order
