TV Series Refrigerator Temperature Controller

TV Series Refrigerator Temperature Controller

admin0
  • Temperature display control function
  • Manual/Automatic electrical heating defrosting function
  • Timing or temperature setting defrosting stop function
  • With power failure memory function
  • Password protection function
  • Sensor disconnect proctection/malfunction display
  • Fan control function

Specification

85-265V AC/DC85-265V AC/DC
Power Consumption<5W
Enviroment Temperature0˚C – 50˚C
Humidity<80%RH
Temperature control range40˚C – 45˚C
Measuring range40˚C – 99˚C
Input2 NTC thermister input(temperature control/defrost)
ResolutionDisplay ±0.1˚C
Sampling cycle<0.1s
OutputRelay SSR
Relay outputCompressor relay : 10A/300VAC Fan/ defrosting : 3A/220VAC
Accuracy±0.5˚C

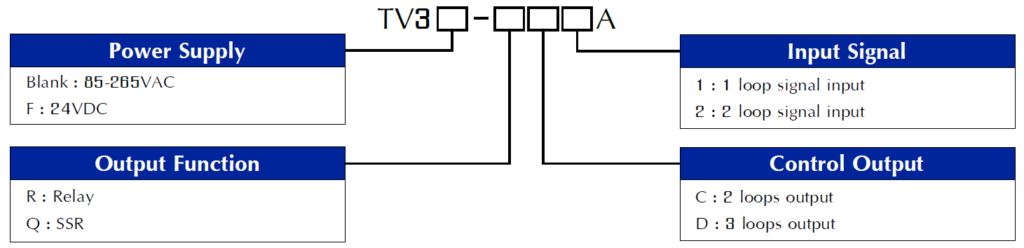

How to order

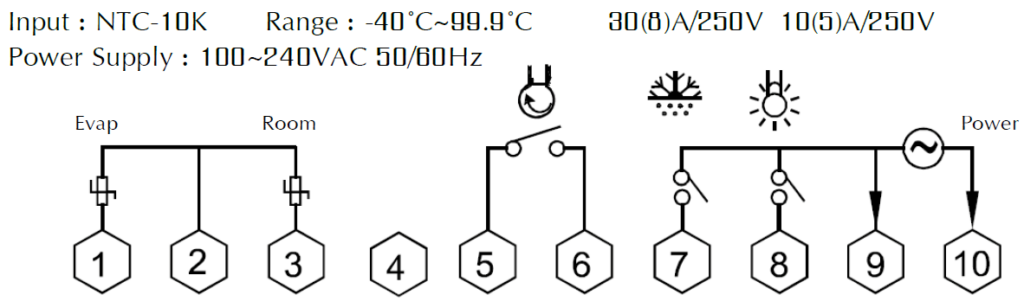

Connection

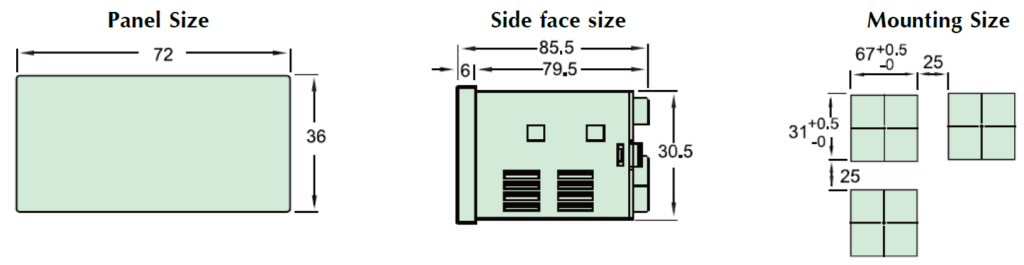

Diemention
